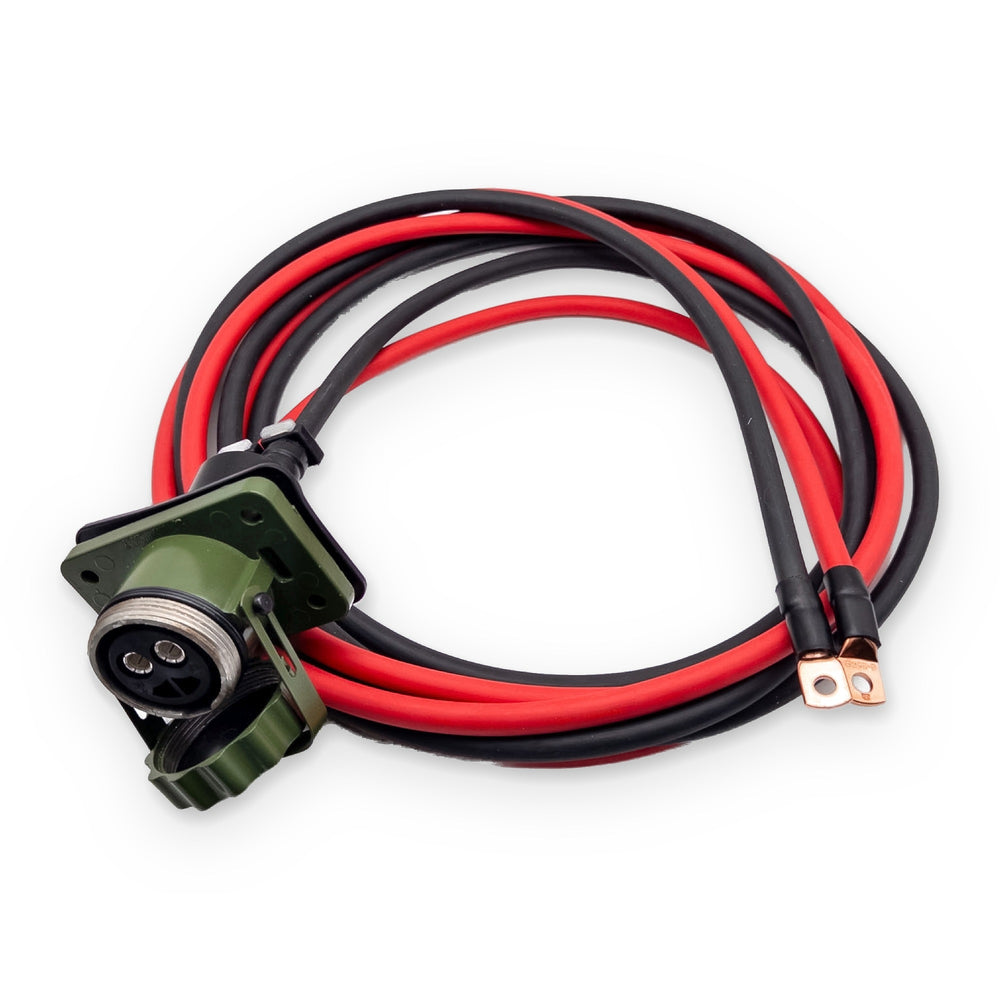

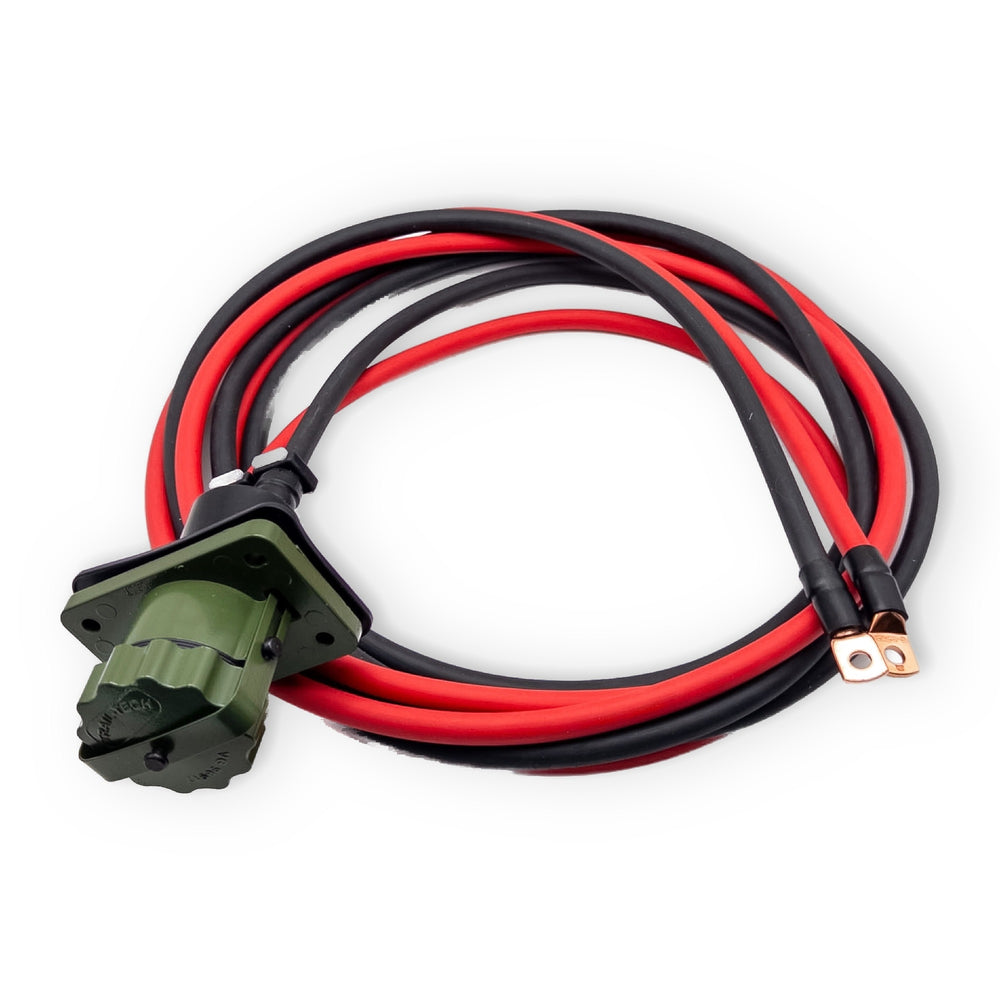

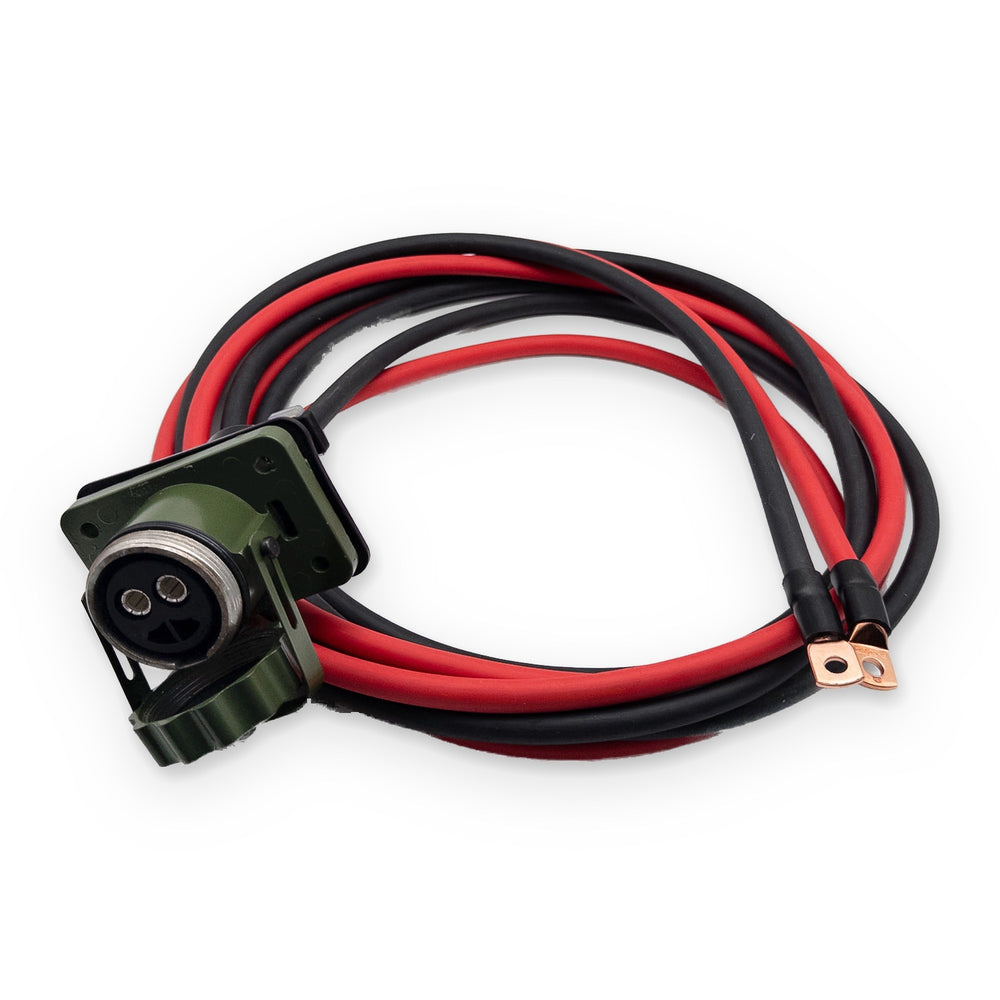

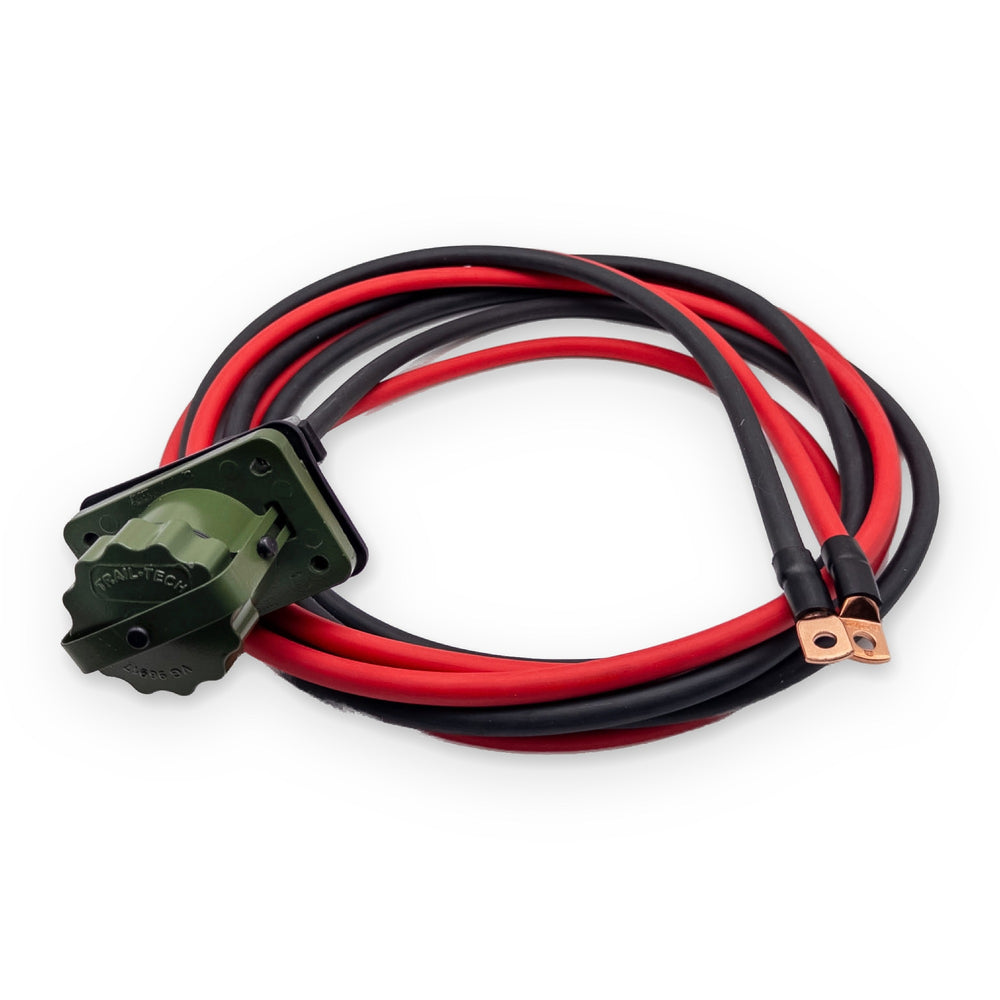

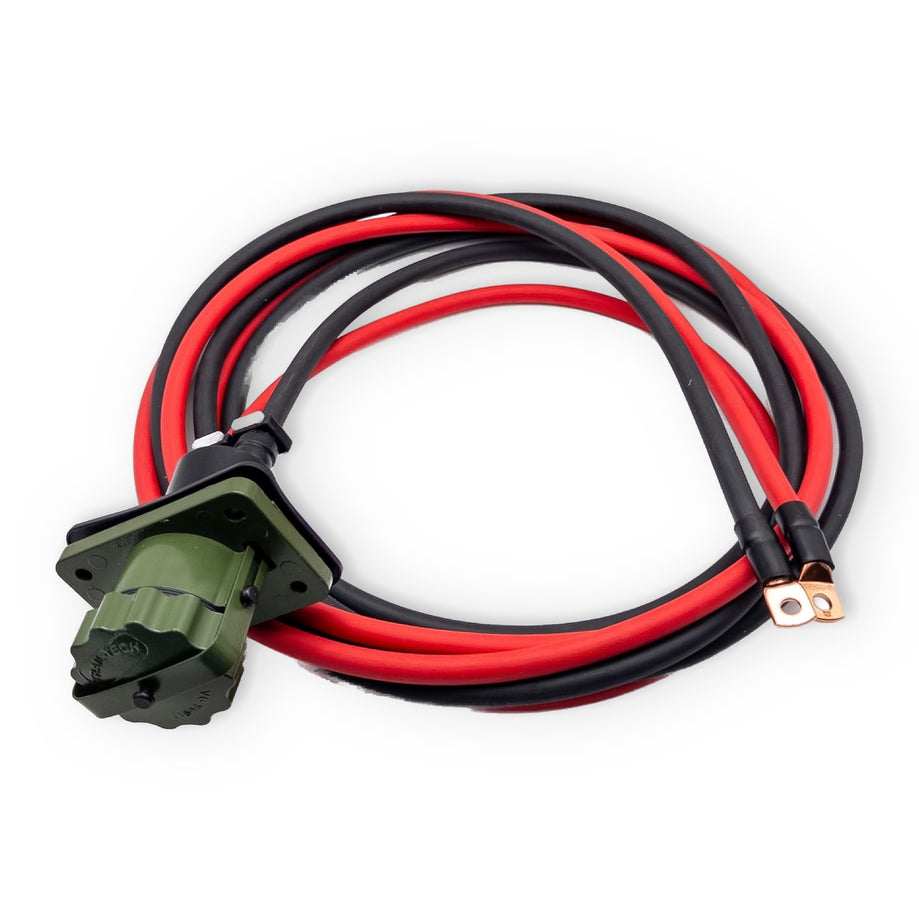

2-pole NATO socket with 4 m connection cable 35 mm² – pre-assembled and ready to install

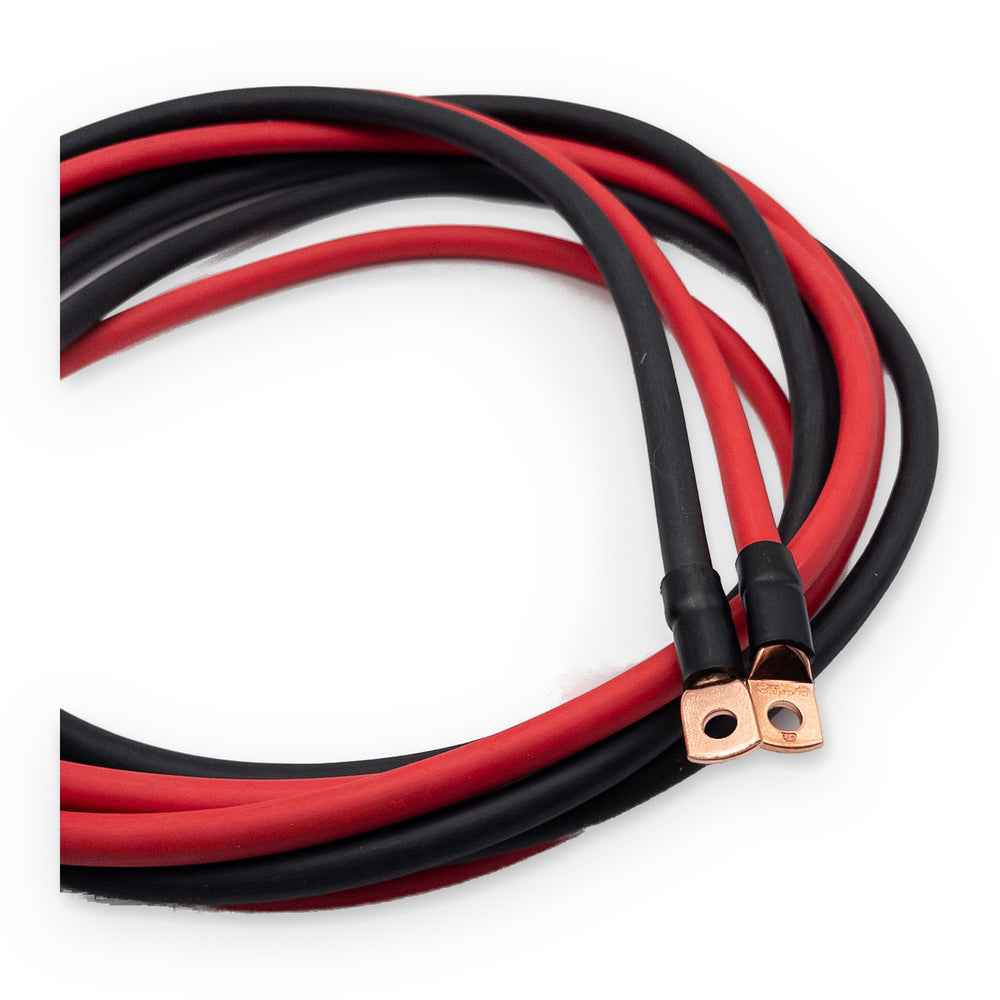

This NATO socket to VG 96917 comes with two 4 m cables (red and black, 35 mm² each) and crimped ring terminals. No crimping or soldering needed – simply mount it and bolt the terminals to the battery or battery isolator.

The 4 m working length reaches from the battery box to the mounting position even on large vehicles. Ideal for jump-starting, external starting and a safe power supply in 12 V and 24 V systems. Also known as NATO slave socket, jump-start socket or "pig nose".

Technical data

Applications

• Military vehicles
• Fire and rescue vehicles
• Agricultural vehicles
• Off-road vehicles
• Jump-starting and safe power supply

Scope of delivery

1 × 2-pole NATO socket, pre-assembled with 2 × 4 m cable 35 mm² (red/black) and ring terminals

Frequently asked questions

Is the socket suitable for 12 V and 24 V?
Yes, the NATO socket can be used in 12 V and 24 V vehicle systems.

Do I have to connect the cables myself?
No. The cables are already mounted on the socket and fitted with ring terminals. You only bolt the terminals to the battery or battery isolator.

Why a 4 m cable length?
On trucks, military and fire vehicles the battery is often far from the desired mounting position. With 4 m you reach distant positions without an extension.

More information on design, cross-sections and selection can be found in our NATO plug guide. Need larger quantities? Request a B2B quote.
